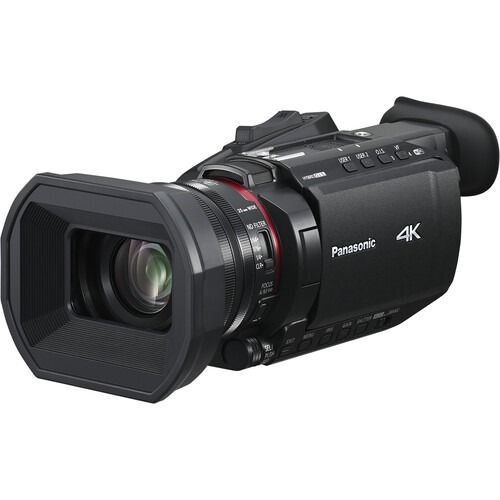

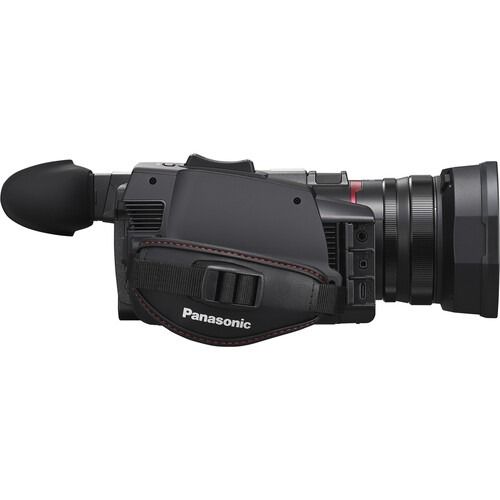

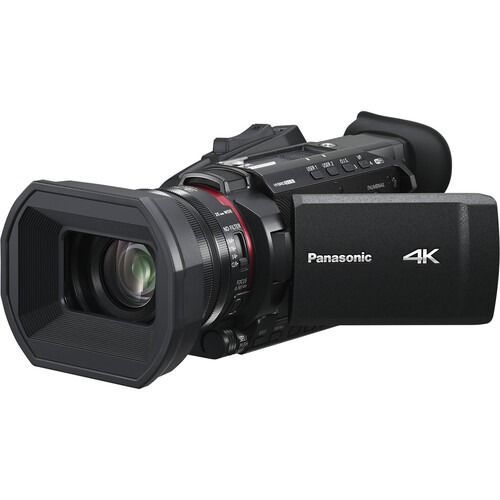

Record high-quality UHD 4K60 video and still photos virtually anywhere with the Panasonic HC-X1600 UHD 4K Camcorder, thanks to its lightweight and compact body. Whether you're filming behind the scenes of a music video or getting content for your latest social media project, the HC-X1600 can work as both a main or secondary camera. The camcorder features a 1/2.5" 8.29MP MOS sensor with versatile recording modes. It is also capable of live streaming up to 1080p video over multiple protocols.
Versatile Recording
The HC-X1600 shoots up to UHD 4K60 video using MOV, MP4, and AVCHD codecs. It also supports a high bit rate of 200 Mb/s when recording UHD 4K at 59.49/50p with HEVC codec or with Full HD 120/100 fps Super Slow Motion. The integrated 25mm lens reaches a 600mm telephoto focal length and provides a wide viewing angle. Capture close-up details using the 24x optical zoom or the 48x digital i.ZOOM in Full HD resolutions.
Live Streaming, Wireless Control
Built-in dual-band Wi-Fi connectivity allows you to live stream footage directly to sources of your choice. The camera supports RTSP, RTP, RTMP, and RTMPS protocols. It can stream Full HD resolution video in both unicast and multicast formats. Connect to the HC ROP app on a tablet or smartphone for remote control and live image preview.
Interface and Connectivity

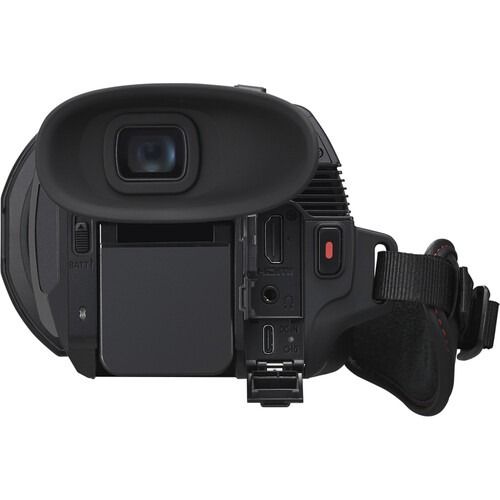

An HDMI output port delivers UHD 4K video to a source of your choice. Record directly to two SD cards simultaneously in MOV/MP4 formats. An integrated stereo microphone captures 48 kHz 16-bit audio in AVCHD/MP4 formats and 48 kHz 24-bit audio in MOV formats. Add your own microphone using the 3.5mm stereo mini jack or 3-pin XLR input with phantom power support and monitor your overall audio via the headphone jack. An additional audio output for a speaker is also included. Remotely control the camera via a 2.5mm mini jack.
Hybird OIS, Face Detection Autofocus

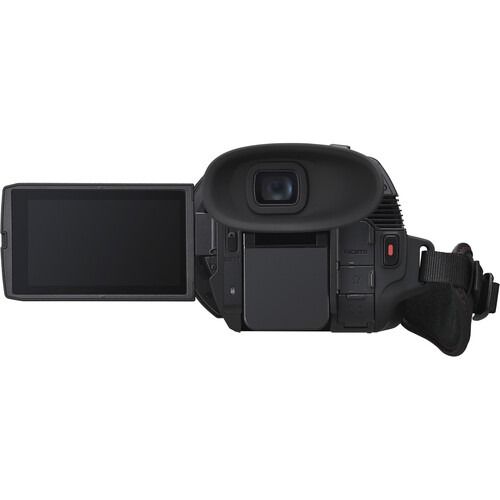

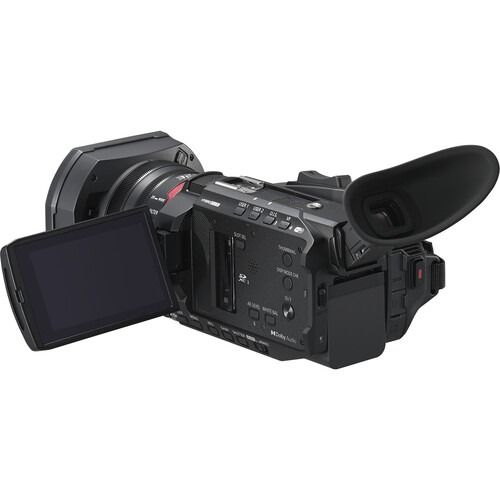

Hybrid 5-axis OIS (optical image stabilization) ensures your footage remains stable using both optical and electronic stabilization. A Ball OIS system also improves small-amplitude blurring. High-precision autofocus with face detection technology locks onto subjects for precise focusing while maintaining exposure. Use the articulating 3.5" LCD touchscreen to activate precise tracking and the OLED EVF viewfinder for handheld image monitoring.
ND Filters
The camera features built-in selectable clear, 1/4, 1/16, and 1/64 ND mechanical filters for quick adjustments during changing lighting conditions.
Long Battery Life
A 5900mAh rechargeable battery keeps the camera up and running for up to 6 hours and 10 minutes of UHD 4K shooting. You can also use the USB-C input to power the camera via DC sources.
Image Sensor
1/2.5"-Type
Effective Sensor Resolution
8.29 Megapixel
Image Stabilization
Digital
Internal Recording
MOV 4:2:2 10-Bit
Up to UHD 4K at 25/29.97/23.98 fps
MOV 4:2:0 8/10-Bit
UHD 4K at 25/29.97/50/59.94/23.98 fps MP4 4:2:0 10-Bit
UHD 4K at 25/29.97/50/59.94/23.98 fps MP4 4:2:0 8-Bit
Up to UHD 4K at 25/29.97/23.98 fps AVCHD 4:2:0 8-Bit
Up to 1080p at 50/59.94 fps
Video Output
4:2:2 10-Bit via HDMI
Up to UHD 4K at 25/29.97/50/59.94/23.98 fps
MOV 4:2:2 10-Bit
3840 x 2160 at 25/29.97/23.98 fps
1920 x 1080p at 23.98/50/25/29.97/59.94 fps
1920 x 1080i at 50/59.94 fps MOV 4:2:0 8/10-Bit
3840 x 2160 at 25/29.97/50/59.94/23.98 fps MP4 4:2:0 10-Bit
3840 x 2160 at 25/29.97/50/59.94/23.98 fps MP4 4:2:0 8-Bit
3840 x 2160 at 25/29.97/23.98 fps
1920 x 1080p at 23.98/50/59.94 fps AVCHD 4:2:0 8-Bit
1920 x 1080p at 50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Video Output
4:2:2 10-Bit via HDMI
3840 x 2160 at 25/29.97/50/59.94/23.98 fps
1920 x 1080p at 59.94/23.98/25/29.97/50 fps
1920 x 1080i at 59.94/50 fps
1280 x 720 at 59.94/50 fps
720 x 576p at 50 fps
720 x 480p at 59.94 fps
Fast-/Slow-Motion Support
Yes
Built-In Microphone
Stereo
Audio Recording
AVCHD, MP4: 2-Channel, 16-Bit at 48 kHz
IP Streaming
H.264, RTSP, RTMP, RTP, RTMPS
1920 x 1080
1280 x 720
640 x 360
320 x 180
Interface
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I) [512 GB Maximum]
Internal Storage
No
Video I/O
1x HDMI Output
Audio I/O
2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power)
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
