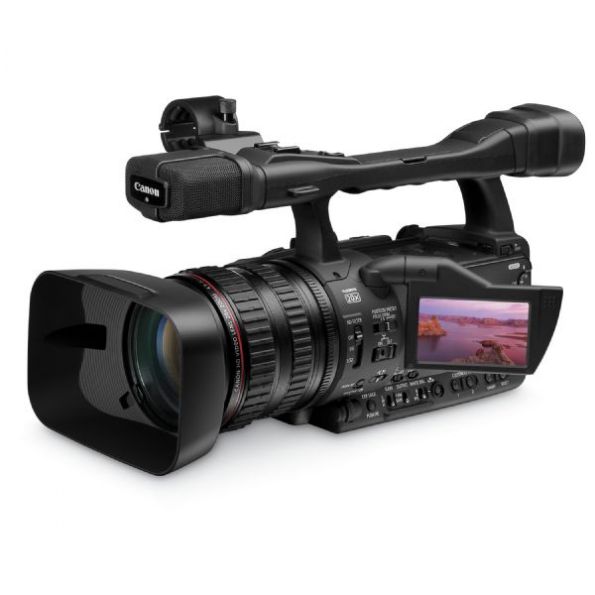

Canon XH-G1S 3CCD High Definition Professional Camcorder

The Canon XH-G1s is an updated version of the award-winning XHG1 HDV camcorder. The camera is geared towards the videographer on a budget who isn't willing to compromise any of the professional attributes of its big brother, the XL-H1. With the same high quality 1/3" CCDs, the camera yields an image both crisp and noise-free. The solid feeling is instantly apparent when operating the XH-G1s; despite its modest frame, the camera performs like a pro. Improvements over the previous model include higher quality zoom, focus and iris rings. Utilizing the highly efficient HDV compression format allows over an hour of high definition recording on a single miniDV tape! Featuring a 20x fluorite fixed lens, its superior optics gives professional level shooters ultimate image fidelity unmatched by the competition. Also included is the Instant AF auto-focus system, incorporating technology that helps reduce auto focus reaction time while increasing overall accuracy. The G1s comes equipped with the same professional connections that make the XL-H1 so unique. Fitted with the "jackpack", the camera can output uncompressed video through its integrated HD-SDI connection, making it ideal for field broadcasting. This is combined with both a genlock and timecode out, making the G1 a perfect camera not only for the field, but the studio as well. Concert and event videography is a breeze! Updated FeaturesThe XH-G1s improves upon on an already stellar camera. Some improvements include flags for 24f 2:3 pulldown through HD-SDI, simultaneous use of XLR and built-in microphone, audio volume lock, a 6-Pin FireWire I/O, the ability to share scene files between XLH1 series and XLA1 series camcorders, an audio limiter, and more!HD at Your FingertipsThe XH-G1s camcorder has three 1/3" 16:9 interlaced CCDs that capture images at 1080i resolution. The camcorder features selectable frame rates of 60i, 30 Frame and 24 Frame to allow the user to adjust to the assignment at hand and can switch back to SD resolution if needed. At the 30 Frame rate, broadcasters can capture fast motion like sports with confidence that each frame is captured individually and completely. Filmmakers can utilize the 24 Frame rate when creating the look and feel of movie film. The 60i frame rate, meanwhile, delivers exceptional resolution for shooting environments like ENG or Reality TV.High Quality ImagesThe XH-G1s HD camcorder includes Canon's proprietary DIGIC DV II image processor. DIGIC DV II is an image processor that can process both HD and SD video signals as well as still photos. The highly effective chip ensures clean, noise-free footage with unmatched color fidelity.Flip-Out LCDThe camera features a flip-out LCD capable of being viewed from both sides of the camera, a feature often overlooked on competitive cameras. The LCD provides ample resolution for more capable focus assistance. The display tucks cleanly under the handle when not in use, resulting in unfettered side controls.Instant AFInstant AF is an auto-focus assistant that dramatically increases both speed and accuracy when paired with HD technology. High Definition requires far more precision to get perfect focus than its standard definition counterpart. The increase in fidelity means the camera itself must work harder to find complete focus. If the auto-focus still doesn't satisfy, Canon has included independent rings for not only focus and zoom, but iris as well; A feature usually only afforded to high-end ENG systems.CustomizableThe XH-G1s can be customized in a variety of different ways. The image itself can be tweaked to get an endless array of different styles. Additionally, all of these functions can be saved via a Secure Digital (SD) card, for future retrieval. This feature can also be used to transfer camera settings from one camera to another, which can save time during projects with multiple cameras.Optical Stabilization FeatureCanon calls its image stabilizer Super-Range Optical Image Stabilization and it helps defeat camera shake from hand held shooting and even shake produced from a moving vehicle. Because it is an optical function, it can compensate for a greater degree of camera shake and avoids any loss in image quality unlike electronic or digital stabilizing methods.Uncompressed HD-SDIThe XH-G1s camcorder has all the connectors that professionals have been missing in other low-cost HDTV camcorders. For the ultimate in video transfers, this camera has an uncompressed HD-SDI connector. The serial digital BNC connector provides unparalleled control and image clarity, completely bypassing HDV compression.Time CodeThe XH-G1s camera is equipped with true SMPTE time code input and output. Time code from the camcorder can be sent to other recording devices (cameras, VTRs) so they are all recording with the same clock.Genlock SynchronizationMulti-camera shoots with the XH-G1s is no problem since the camcorder has Genlock sync. This feature allows many devices including

Power Supply (rated)	7.4V DC (battery pack)
Video Recording system	HDV: HDV1080i; DV: DV specifications Two rotating heads, helical scan azimuth recording, (Consumer VCR SD specifications)
Audio Recording system	HDV: 2-channel recording MPEG1 Audio Layer II: (Sampling frequency 48 kHz, bit rate 384 kbps) DV: 2-channel recording PCM digital recording: 16 bits (48 kHz), 12 bits (32 kHz, 12 bits selectable)
Image Sensor	(3) 1/3-inch CCDs
Total Pixels	Approx. 1.67 Megapixels each x 3
Effective Pixels	HD approx. 1.56 Megapixels SD (4:3) approx. 1.17 Megapixels SD (16:9) approx. 1.56 Megapixels
Tape Format	Video cassettes bearing the MiniDV mark
Tape Speed	HDV/DV: SP mode 18.81mm/second DV: LP mode 12.56 mm/second
Maximum recording time	HDV/DV: SP mode 80 min. DV:LP; 120 min.
Lens	Canon 20x HD L Series Zoom, f=4.5-90mm, f/1.6-3.5
Focusing System	Instant AF system TTL-video signal sensing system autofocus. Manual focusing possible.
Minimum Focusing Distance	20mm (wide macro), 1m (entire zoom range)
Frame Rate	NTSC : 60i, 24F, 30F PAL : 50i, 25F
Minimum Illumination	NTSC: 6 lux (Shutter speed 1/60, Gain 18 dB) PAL: 5 lux (Shutter speed 1/50, Gain 18 dB) Manual mode (when Gain 18 dB, f/1.6, 60i/50i are selected) NTSC: 0.4 lux (Shutter speed 1/4), PAL: 0.3 lux (Shutter speed 1/3) (when 60i/50i is selected)
Image Stabilization	SuperRange Optical (Lens Shift)
Filter Diameter	72mm
Viewfinder	.57-inch widescreen, approx. 269,000 pixels
LCD Screen	2.8-inch widescreen, approx. 207,000 pixels
Microphone	High-performance stereo electric condenser microphone
Recording Media(photos)	SD/SDHC , MMC

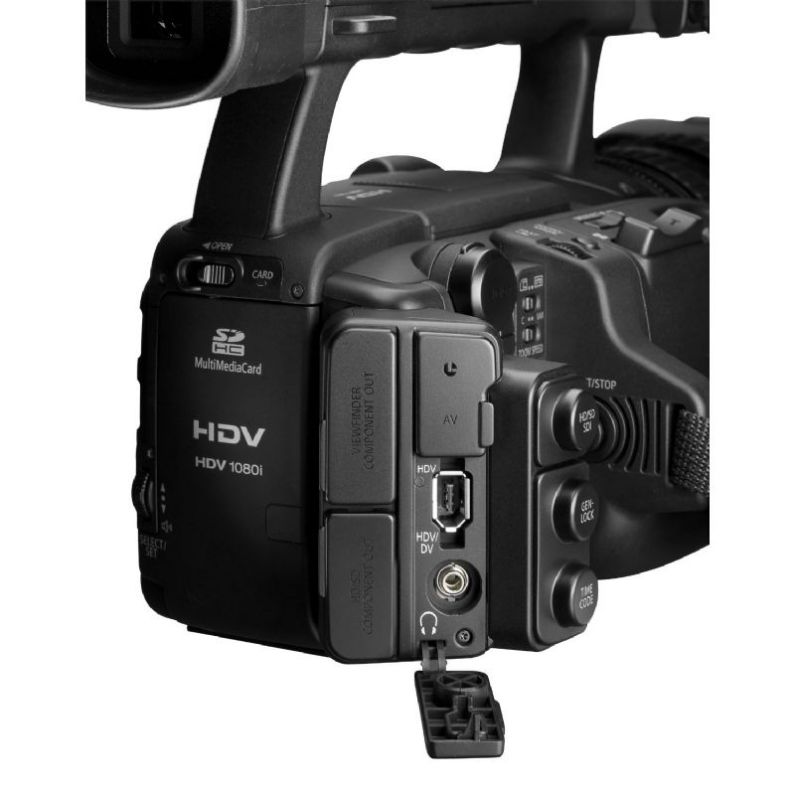

DV Terminal	HDV/DV 6-pin connector (IEEE1394 compatible); both input/output
Video Terminal	(a) Also serves as AV mini-terminal; both input/output (b) Also serves as BNC connector; output
Output Levels	-12 dBV (with 47-kohm load, 1 Vrms output level setting and -12 dB full scale)
Audio Terminal	XLR 3-pin jack (2 systems); Switchable between MIC/LINE
Microphone Terminal	3.5mm stereo mini-jack
Operating Temperature range	32 – 104° F (0 – 40° C)
Dimensions	6.4 x 7.6 x 15.5 in. (163 x 192 x 394mm)
Weight (not including lens hood and eyecup)	XH G1S:4.9 lbs. (2200 g) / XH A1S:4.7 lbs. (2135 g)

• Brand New Factory Fresh Import Model
